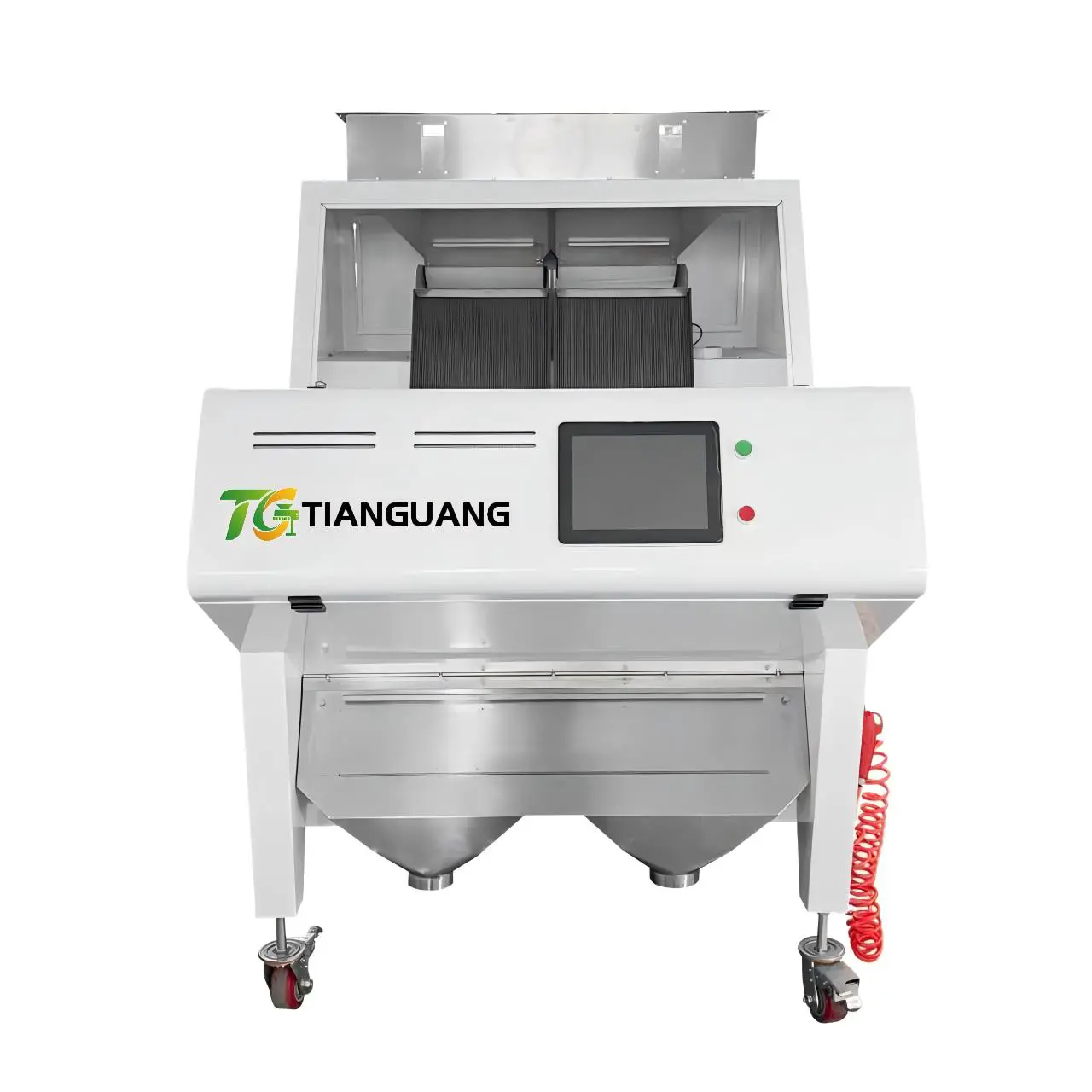

Watch the TG-CS128 Color Sorter deliver precision sorting in real production environments
Complete demonstration from feeding to output. See how 99.9% accuracy is achieved across rice, grains, and mixed materials.
Request Live DemoFrom raw material feed to precision output in 5 stages
Raw material enters the vibrating feeder, spreading evenly into a single-layer stream on the high-speed chute.
High-resolution CCD cameras scan each particle at 10,000+ fps, capturing color, shape, and texture data simultaneously.
Deep learning algorithm processes visual data in real-time, classifying each particle as accept or reject with 99.9% confidence.
Precision solenoid valves fire micro-bursts of compressed air to deflect defective particles into the reject stream within 0.5ms.
Accept and reject streams are cleanly separated. Accept material achieves premium grade purity, ready for packaging.
Replace the image above with an animated GIF to visually demonstrate the complete sorting workflow — from material input to the separated accept/reject output streams.
Core parameters that define sorting excellence
Model | Power(Kw) | Power Supply | Dimension L*W*H (mm) | Weight (Kg) | Capacity (T/H) | Accuracy (%) | Carryover Ratio |
|---|---|---|---|---|---|---|---|
CS-CH32 | 0.7 | customizable | 450*1100*1500 | 105 | 0.25 | ≥99.99 | ＞120:1 |
What sets TG-CS128 Color Sorter apart from conventional sorters
Self-evolving neural network trained on 10M+ sample images. Adapts to new defect types without manual reprogramming — just feed and learn.
5400+ pixel CCD line-scan cameras with custom optics capture 0.01mm defects invisible to the naked eye. Full-spectrum RGB + IR detection.
256 high-speed solenoid valves with 0.5ms response time. Air curtain technology ensures clean separation with >10:1 carryover ratio.
Built-in IoT module enables real-time monitoring from any device. Track production stats, receive alerts, and adjust parameters remotely.
Two independent sorting stages in a single pass. Primary sort removes obvious defects; secondary sort catches subtle imperfections for ultimate purity.
Heavy-duty steel frame with IP54 protection. Food-grade stainless steel contact parts. Designed for 24/7 continuous operation in harsh environments.
Explore more sorting solutions for your production line
Tell us your material type and capacity requirements, and we'll provide a customized sorting solution and quote within 24 hours. Free sample testing available!
